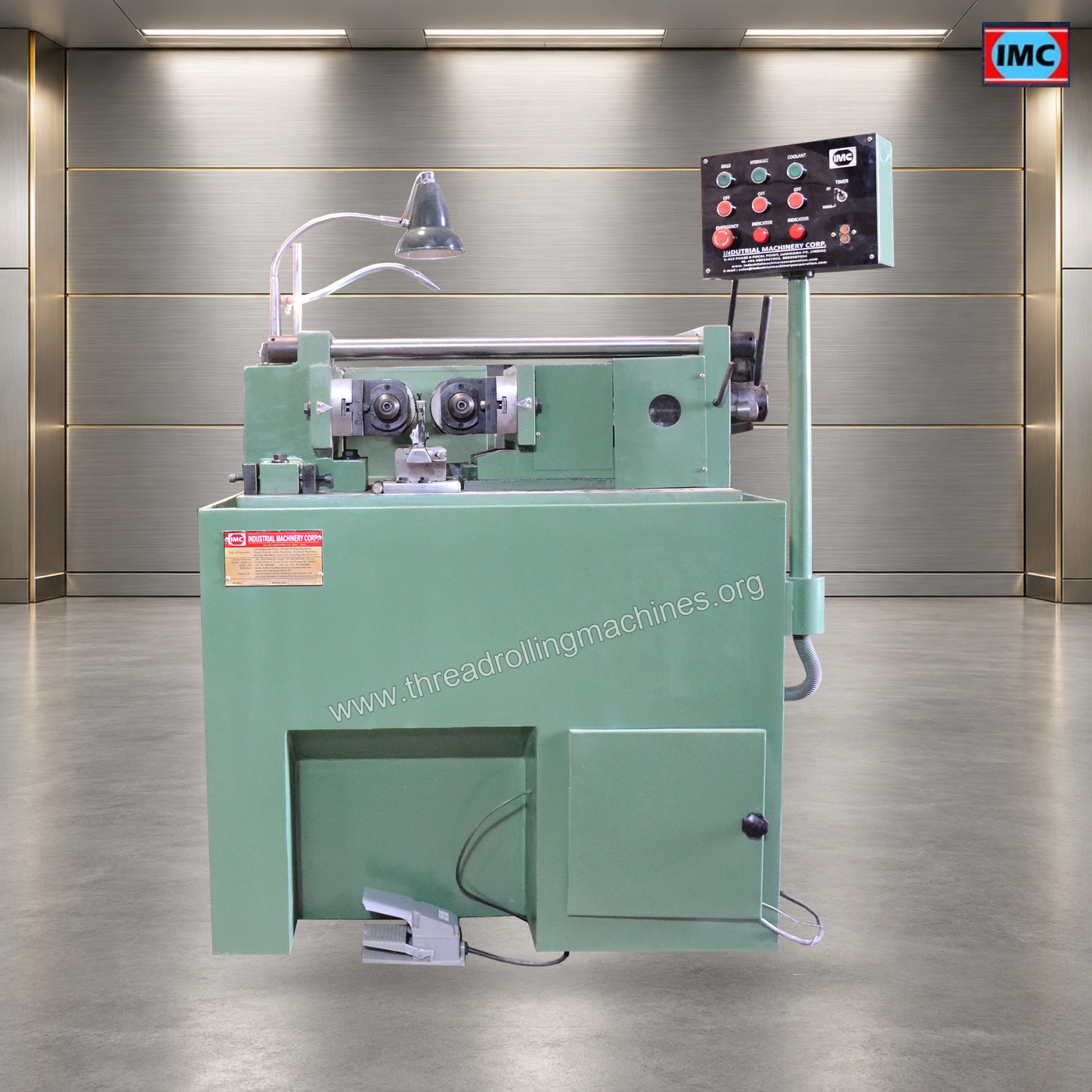

Hydraulic Thread Rolling Machine 2 Roll
With an experience of more than a decade, an industrial machinery corporation has mastered the art of designing and manufacturing industrial machines. We have been in this business for over 12 years now and in these 12 years, our concentration has been on not only providing the finest quality machines but learning at every step of this endeavor. We have been designing and manufacturing Hydraulic Thread Rolling Machine 2 Roll since our formation and we have gained a special expertise in this maneuver which has allowed us to tag ourselves with the title of most promising industrial machinery manufacturers.
VIEW SPECIFICATIONSAvailable Options
Specifications
At our industrial machine manufacturing unit based in Ludhiana, where we have all the ultra-modern machines, latest technologies, and best-skilled technicians, we are in a continuous attempt to make not only our Hydraulic Thread Rolling Machine 2 Roll but every machine better than its previous version. Our zeal and intensity for giving our best every time come from the fact that customers worldwide have unflinching faith in Thread Rolling Machine 2 Roll manufactured at Industrial Machinery Corporation. We strive every second to make our Hydraulic Thread Rolling Machine 2 Roll in the best-customized way as per the requirements mentioned by them before starting the manufacturing process. We have never tried to win clients of Hydraulic Thread Rolling Machine by flowery words rather it is just the quality of our Thread Rolling Machines 2 Roll that has helped us get the most clients. We maintain this quality of the Machine by continuously keeping a strict eye on the whole manufacturing process: right from getting raw material to until the finished product has been successfully and safely delivered to our clients.
In our raw material section, before starting production, we allow our quality vigilance team to inspect every millimeter very strictly for any sort of defect or flaw. Before every order, we vow to our clients that we’ll try our best to deliver their kind of Thread Rolling Machines in the allotted time without compromising on the quality even for a second. In the entire attempt, we were very firm in maintaining our cost of the Hydraulic Thread Rolling Machines to the point where we started it. We try not to swell our prices for no reason; there are slight changes in our costs only if there is some major customization requirement made by the client in the Hydraulic Thread Rolling Machine 2 Roll. Our research team works continuously to bring out an even better version of every machine and in this attempt; we manufacture two types of Hydraulic Thread Rolling Machines. Thread rolling is a cold-forging process that forms the entire length of an external thread by displacing the material. Threads are produced on the blanks of predetermined diameter by a rolling action under pressure and between two rotating cylindrical steel roll dies whose working faces are suitably threaded. This entire action takes place in such a way that the part of the blank metal is replaced by a bout of thread and raised in unbroken lines to form the crest of the thread.
After this the roll die rotates parallel to it or tilted horizontal spindle and these dyes are made up of specially formed steel alloy which gives extra toughness and rigidity to Hydraulic Thread Rolling Machine to bear all kinds of wear and tear while performing in the manufacturing unit.
Hydraulic Thread Rolling Machine 2 Roll Specifications:| Model | IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120 |
| Max. Pitch Can be Rolled (in mm) | 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8 |
| Max. Dia can be Rolled in feed (in mm) | 25 | 40 | 50 | 80 | 100 | 125 |
| Max. Dia can be Through feed (in mm) | 16 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length in feed (in mm) | 80 | 150 | 150 | 150 | 150 | 150 |
| Max. Rolling Length Through feed | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite |
| Max. Outer Dia Thread Rolls (in mm) | 150 | 180 | 200 | 220 | 220 | 220 |
| Spindle Dia (Bore Dia) (in mm) | 54 | 54 | 69.85 | 69.85 | 69.85 | 69.85 |
| Max. Rolling Force | 8 Tons | 13 Tons | 15 Tons | 24 TONS | 30 Tons | 40 Tons |
| Power for Roll Spindles | 3 H.P. 1400 RPM | 5 H.P. 1400 RPM | 7.5 H.P. 1400 RPM | 10 H.P. 1400 RPM | 12. 5 H.P. 1400 RPM | 15 H.P. 1400 RPM |
| Power for Hydraulic Pump | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Power for coolant pump | 0.1 H.P. | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P. |
Thread Rolling Dies 3 Roll Type Thread Rolling Dies 2 Roll Type
IMC Thread rolls are used on the thread rolling machine. These rolls come in the set of two and three pieces manufactured from D2,D3 and M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din Whiteworth America, Trapozodical, Acme etc
