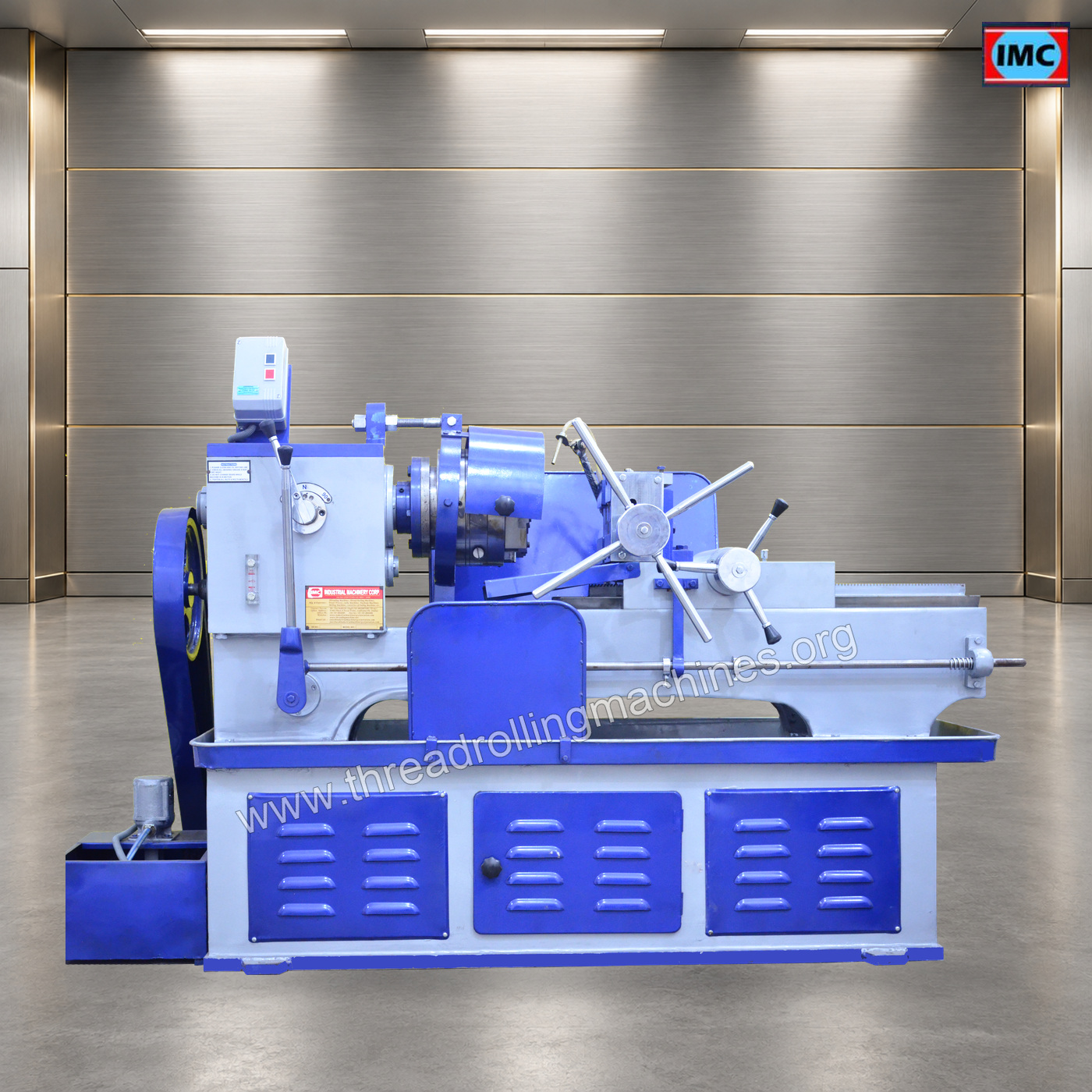

While manufacturing Bar Threading Machine, we ensure that only that raw material is used which has surpassed various quality checks before entering into our manufacturing unit. For all these 12 years of being in business, we have always kept our production standards very high and ensured that there is no flaw in the entire process.

A Bar Thread Cutting Machines is used in tool-rooms and factories to cut external threads on the bars and these machines run using the chasing method. In the chasing method, the Bar Threader makes the bar stay unmoved in one place and makes the die head rotate around and create fine threads. A Bar Threader works best with HSS Tangential chasers and can cut a wide variety of threads. But the main factor influencing this variety created by Bar Thread Cutting Machines is what type of cutter is being used at that time on these machines.

Below is the list of cuts that our Bar Thread Cutting Machines manufactured at our unit based in Ludhiana can cut:

1. Matric
2. BSP
3. BSPT
4. NPT
5. UNF
6. UNC
7. BSW
8. Acme Threads
9. B.S.F

Here is the list which contains the names of various parts of Bar Thread Cutting Machines made by industrial machinery corporation at Ludhiana based unit:

1. Base
2. Head Stock
3. Saddle
4. Bed or Pillar Type Clamping Vice
5. Die Head

Bar Thread Cutting Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in thread Cutting performance and the damaged set can be replaced without the necessity of replacing the entire set.
