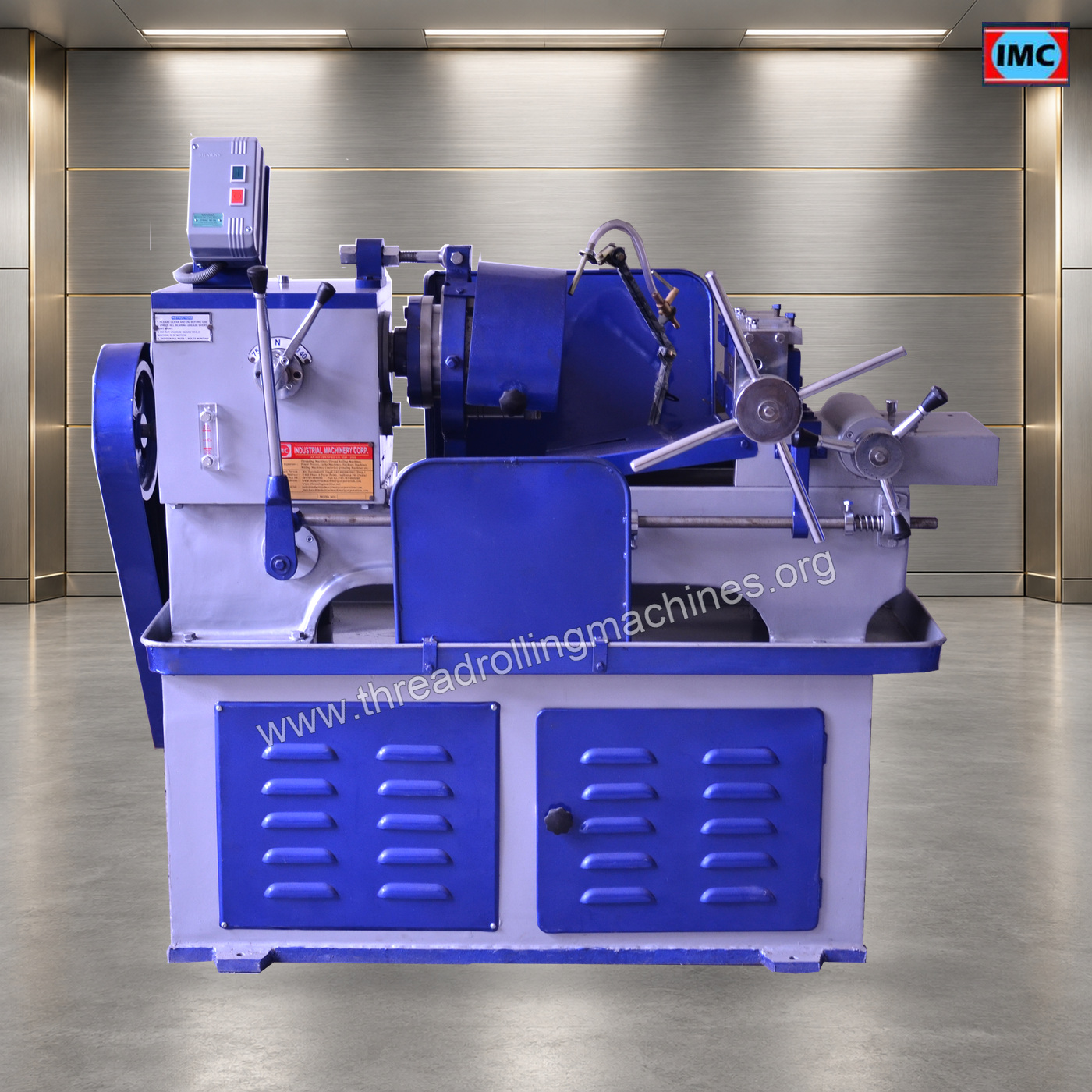

IMC Bolt Threading Machine in India - High Quality Performance

For more than 12 years, we have been a highly established company in the field of industrial machine manufacturing. And since then we have been successfully manufacturing and supplying the best quality Bolt Threading Machine for all our clients ranging from not only India but abroad as well. In these 12 years of being in operation, we have been manufacturing an extensive range of remarkable industrial products, and all these machines are made by the skilled hands of our expert technicians and trained engineers who have been engaged in designing and manufacturing Bolt Threading Machine for decades now. Our Machine is widely used in the Pipe and Bolt manufacturing industries. Our professionals also manufacture and supply technically advanced Bolt Threading Machines according to the specific needs and demands of the market. This Machine is highly reliable, durable, and accessible at highly customized prices. Our Bolt Threading Machine is designed in such a way that it can be efficiently used to thread bolts made up of various metals with extreme accuracy and precision.

VIEW SPECIFICATIONS

Available Options

Diameter of the job

Thread Length Require

Thread Type

Purchase

Expected Price

Specifications

Our Bolt Threading Machine has the quality to work at different speeds and on different motors as per the type of bolt threading, the machine is performing. Our Machine is made up using two flat dies that are fitted together with simple mechanisms making it extremely easy to use. The Bolt Threading Machines manufactured here are designed to provide the user with a hassle-free maneuver system, elevated competence, and lengthy robustness. The following are the key attributes of our Machine:

Extra strength with long running time
Durability
Low noise operation
High quality performance
Gives accurate threading
Can operate at different capacities
Easy to install

Having so many qualities our Machine is the best machine for performing various types of tasks which include threading of:

Screws
Bolts
Cycle
Automobile parts
Mild Steel Bars
Aluminum Bars

Our Bolt Threading Machine is generally used for cutting external threads on bolts and this machine uses the chasing method to thread bolts. In the chasing method, the machine makes the bolt stay stable in one place while allowing the die head rotates around create fine cuts of threads. On the whole, the working mechanism of the Bolt Threading Machine is the same as that of the bar threading machine. There are many types of threads that this machine can cut using HSS Tangential chaser but this variety will rely heavily on the type of chaser or cutter installed in this bolt threading list some of the thread designs that this machine can cut are BSP, MATRIX, BSPT, NPT, UNF, UNC, BSW and Acme. Generally, a Machine is made up of the components mentioned below.

Base
Head Stock
Saddle
Pillar Or Bed Type Clamping Vice
Die Head

Following is the range in which Bolt Thread Cutting Machine made at industrial machine corporations can work:

1/4" to 1" do/-
3/8" to 1.12" do/-
1/2" to 2.1/2" do/-
1" to 4" Capacity Bolt

Specifications:

MODEL	1/4" TO 1" (BED TYPE)	3/8" TO 1.1/2" (BED TYPE)	1/2" TO 2.1/2" (BED TYPE)	1" TO 4" (PILLAR TYPE)
Saddle Movement	10"	13"	22"	10" – 12"
Spindle Speed Range	75 - 140	75 - 140	45 - 90	40-75-115
Number of Spindle Speed	2	2	2	3
Diameter Capacity	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"	1" to 4"
Production per Hour	60-80	60-80	70-90	35-40
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.	12.5 H.P. 960
Lead Screw	Optional	Optional	Optional	Provided
Weight (KG) Approx.	500	550	990	1600

Bolt Threading Machine Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they were intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. The same No. pc. The other chaser set lying in stock may be used and there will not be any difference in thread performance and the damaged set can be replaced without the necessity of replacing the entire set.
