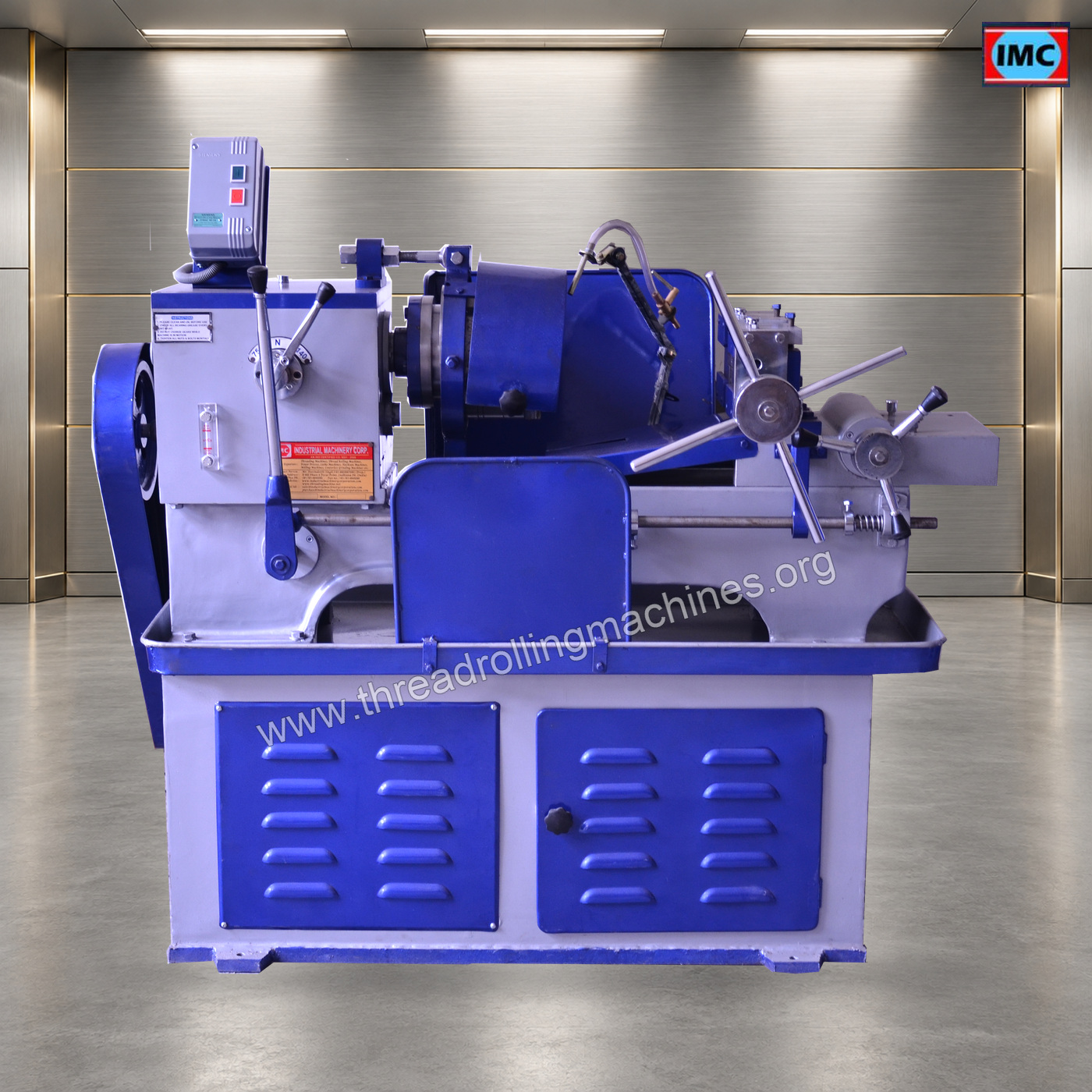

Versatile Rod Threading Machine - Manufacturing Unit in Ludhiana

A Rod Threading Machine is a gem of an industrial machine manufactured at our industrial machine manufacturing unit based in Ludhiana. The Rod Threading Machine made by us has been admired by clients from around the world and not only this, there many features in our Rod Threading Machine which makes it the most recommended Rod Threading Machine over the internet. The very first factor adding to the popularity of our Rod Thread Cutting Machine is that we thoroughly check our raw material that we use for its quality and after it has surpassed all the quality checks and assessments, it is permitted to be used in our factory. Our Rod Threading Machine has been the most compact, handy and easy-to-use because we use only the latest and most advanced technology to manufacture this rod threading machine. The Rod Thread Cutting Machine of Industrial Machinery Corporation has many notable features that empower this machine to give our results in the form of highly précised and accurately finished high-quality threads despite operating at a very high speed.

VIEW SPECIFICATIONS

Available Options

Diameter of the job

Thread Length Require

Thread Type

Purchase

Expected Price

Specifications

Following are the specifications of the Rod Threading Machine made by us:

Processing diameter: 6-30mm
Material: carbon steel, alloy steel and nonferrous metal
Screw thread diameter: Ø6mm- Ø30mm
Screw pitch: 0.5-3.5mm
Roll screw wheel scope diameter: Ø120mm- Ø170mm
Roll screw wheel scope aperture: Ø54mm
Roll screw wheel scope max width: 100mm
Main spindle tilt angle: ±3°
Main spindle RPM: 34/43/57/72rmp
Largest hydraulic pressure: 80KN
Spindle transmission power: 4kw
Hydraulic transmission power: 2.2kw
Cooling power: 90w
Size: 1480*1500*1050mm
Weight: 900±50Kg

The Rod Threading Machine made by us is very versatile as it was designed in such a way that it can create a variety of threads but this variety would entirely depend upon the type of chaser being installed in this machine at the time of the job. A Rod Thread Cutting Machine made by us can be used in factories and tool rooms for threading of rods. Generally, a Rod Threading Machine works best when HSS Tangential chasers are fitted in it but it can work efficiently with the wide range of blades and can create a wide variety of threads. Rod Threading Machine runs on chasing principle in which, the rod is made to stay unmoved at one place and the die head is made to rotate around and create threads with absolute accuracy and perfection on the rods.

Basically, this machine is best suited for creating the following threads:

Matric
BSP
BSPT
NPT
UNF
UNC
BSW
Acme threads
B.S.F. threads

When we come into some sort of order completion, we make sure that we complete it in the provided time without making any sort of compromise with the quality. Post-production each machine, not only the Machine is checked very strictly for production defects or safety related flaws. Once the quality compliance team is fully satisfied, only then our machine is sent to the clients.

Following is the range of our Rod Threading Machine:

1/4" to 1"do/-
3/8" to 1.1/2" do/-
1/2" to 2.1/2" do/-
1" to 4"Capacity do/-

Specifications:

MODEL	1/4" TO 1" (BED TYPE)	3/8" TO 1.1/2" (BED TYPE)	1/2" TO 2.1/2" (BED TYPE)
Saddle Movement	10"	13"	22"
Spindle Speed Range	75-140	75 -140	45 - 90
Number of Spindle Speed	2	2	2
Threading Capacity	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"
Production per Hour	60-80	60-80	70-90
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.
Lead Screw	Optional	Optional	Optional
Weight (KG) Approx.	500	550	990

Rod Threading Machine Tangential Chaser

IMC Threading Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Threading Chaser is interchangeable. If one Pc. Of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
